Chip-Induktoren – Gleichtakt

Spezifikationen

Das Produktangebot von Bourns® umfasst Chip-Induktoren, Leistungsdrosseln, Chip-Beads, Chip-Bead-Arrays sowie radial und axial bedrahtete Induktoren in SMT-Ausführung. Diese Bauteile findet man in Anwendungen der Computer-, Kommunikations-, Instrumentierungs-, Industrie- und Medizintechnik.

Konfliktmineralien- Herkunftsbericht für Magnetics & JW Miller® ：CMRT

Product Series

Parametric Table

RoHS Files

Collateral

Videos

Request Samples

Serie	Datenblatt	Größe	Impedanzbereich	Strombereich	Gleichstromwiderstand	MDS	Design Dateien

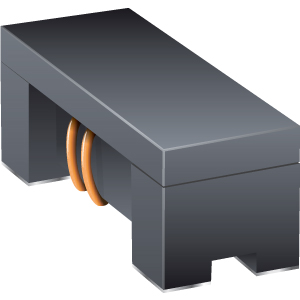

SRF2012A		2 x 1.2 x 1.2 mm	30 - 900 Ω	100 - 400 mA	0.2 - 0.88 Ω	SRF2012A	Downloads

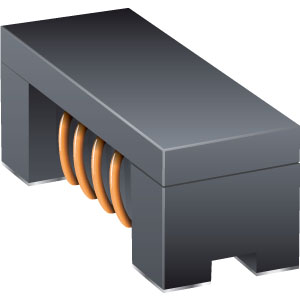

SRF3216		3.2 x 1.6 x 2 mm	90 - 2200 Ω	200 - 400 mA	0.3 - 1.2 Ω	SRF3216	Downloads
SRF4532	SRF4532	4.5 x 3.2 x 2.8 mm	700 - 5000 Ω	200 - 300 mA	0.8 - 8.9 Ω	SRF4532
SRF2012AA	SRF2012AA	2 x 1.2 x 1.2 mm	67 - 360 Ω	300 - 400 mA	0.25 - 0.5 Ω	SRF2012AA SRF2012A-900YA
SRF3216A	SRF3216A	3.2 x 1.6 x 2 mm	90 - 2200 Ω	200 - 400 mA	0.3 - 1.2 Ω	SRF3216A
SRF2012A-801Y	SRF2012A-801Y	2 x 1.2 x 1.2 mm	800 Ω	300 mA	0.88 Ω	SRF2012A-801Y

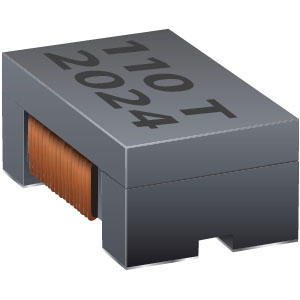

SRF4530A	SRF4530A	4.5 x 3.2 x 3 mm	600 - 7500 Ω	0.2 - 0.36 A	0.5 - 1.5 Ω	SRF4530A

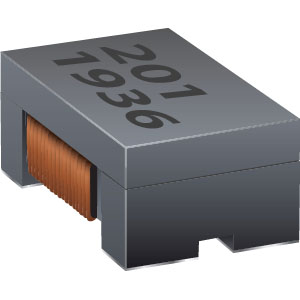

SRF4530AG	SRF4530AG	4.5 x 3.2 x 3 mm	1100 Ω	0.1 A	4.5 Ω	SRF4530AG
SRF3225AB	SRF3225AB	3.2 x 2.5 x 2.5 mm	5500 Ω	0.1 A	3.5 Ω	SRF3225AB

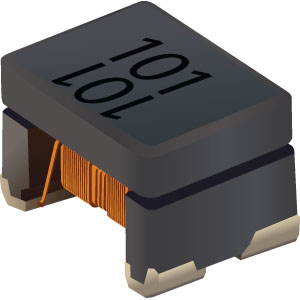

SRF3225TAC	SRF3225TAC	3.2 x 2.5 x 2.5 mm	550 - 5100 Ω	0.15 - 0.3 A	0.4 - 1.5 Ω	SRF3225TAC
SRF3225TABM	SRF3225TABM	3.3 x 2.5 x 2.5 mm	10000 Ω	0.07 A	5.5 Ω	SRF3225TABM
SRF3225TAFD	SRF3225TAFD	3.3 x 2.5 x 2.5 mm	5100 Ω	0.15 A	1.5 Ω	SRF3225TAFD
SRF3225TP	SRF3225TP	3.2 x 2.5 x 2.2 mm	500 Ω - 1000 Ω	1.5 - 2 A		SRF3225TP
SRF3225TABG-101Y	SRF3225TABG	3.3 x 2.5 x 2.5 mm	3000 Ω	0.1 A	3 Ω	SRF3225TABG
SRF4532TA	SRF4532TA	4.5 x 3.2 x 2.8 mm	90 - 2800 Ω	0.9 - 4 A	0.05 - 0.35 Ω	SRF4532TA
SRF1209U4	SRF1209U4	1.2 x 1.0 x 0.9 mm	1.9 - 90 Ω	300 - 400 mA	0.2 - 0.3 Ω	SRF1209U4
CCF1206	CCF1206	1.25 x 1 x 0.6 mm	67-120 Ω	300 mA	0.5 - 0.6 Ω	CCF1206

Model/Datasheet	MSL	Lötprofile	Verpackungsetikett	Anschluss	Konf.	Prüfberichte Dritter	MDB	China RoHS
SRF2012A	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRF	Request Report	SRF2012A	Bourns Chip Inductors Common Mode China RoHS
SRF3216	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRF	Request Report	SRF3216	Bourns Chip Inductors Common Mode China RoHS
SRF4532	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRF	Request Report	SRF4532	Bourns Chip Inductors Common Mode China RoHS
SRF2012A-801Y	1	See Data Sheet	TBD	TBD	SRF	Request Report	SRF2012A 801Y MDS	TBD
SRF4530A	1	See Data Sheet	Ch Pwr Ind	Au (e4)	SRF	Request Report	SRF4530A	Bourns Chip Inductors Common Mode China RoHS
SRF4530AG	1	See Data Sheet	Ch Pwr Ind	Au (e4)	SRF	Request Report	SRF4530AG	Bourns Chip Inductors Common Mode China RoHS
SRF3225AB	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRF	Request Report	SRF3225AB	Bourns Chip Inductors Common Mode China RoHS
SRF3225TAC	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRF	Request Report	SRF3225TAC	Bourns Chip Inductors Common Mode China RoHS
SRF3225TABM	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRF	Request Report	SRF3225TABM	Bourns Chip Inductors Common Mode China RoHS
SRF3225TAFD	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRF	Request Report	SRF3225TAFD	Bourns Chip Inductors Common Mode China RoHS
SRF3225TABG-101Y	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRF	Request Report	SRF3225TABG	Bourns Chip Inductors Common Mode China RoHS
SRF4532TA	1	See Data Sheet	Ch Pwr Ind	Sn (e3)	SRF	Request Report	SRF4532TA	Bourns Chip Inductors Common Mode China RoHS
SRF1209U4	1	See Data Sheet	TBD	TBD	SRF	Request Report	SRF1209U4	TBD
CCF1206	1	See Data Sheet	TBD	TBD	CC3 CofC	Request Report	CCF1206	TBD

File	Type	Size	Uploaded on	Download
Schutz für Hochgeschwindigkeits-Kommunikationsanschlüsse	PDF	843,57 KB	28 Mai, 2015	Download
