Leitungsschutzmodule

Spezifikationen

Bourns bietet Telekom.-Design-Kits, die diese Produktlinie enthalten.

Herkunftsbericht für Line Protection Modules, SEMS ：CMRT

Product Series

Parametric Table

RoHS Files

Collateral

Videos

Request Samples

Serie	Anwendungen	Normen	Beschreibung	Design Dateien
4A12P-1AH-12R5	Customer Premise Equipment, Central Office	GR-1089-CORE		Downloads

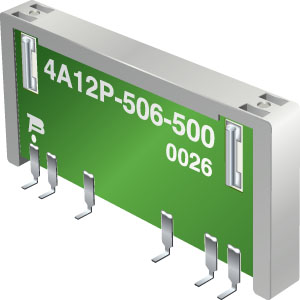

4A12P-506	Customer Premise Equipment, Central Office	ITU-T K.20	Quad resistor plus thermal fuses	Downloads
4A12P-516	Customer Premise Equipment, Central Office	ITU-T K.20	Quad resistor plus thermal fuses	Downloads
4B04B-501-XXX	Customer Premise Equipment, Central Office	GR-1089-CORE	Dual resistor	Downloads
4B04B-502-XXX	Customer Premise Equipment, Central Office	GR-1089-CORE	Single resistor plus fuse	Downloads

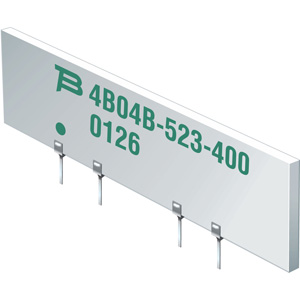

4B04B-523-XXX	Customer Premise Equipment, Central Office	GR-1089-CORE	Matched pair of resistors	Downloads
4B04B-524-XXX	Customer Premise Equipment, Central Office	GR-1089-CORE	Dual resistor plus fuses	Downloads
4B06B-504-RC	Customer Premise Equipment, Central Office	ITU-T K.20	Dual resistors plus PTCs
4B06B-512-XXX	Customer Premise Equipment, Central Office	GR-1089-CORE	Dual resistor plus fuses	Downloads
4B06B-514-XXX	Customer Premise Equipment, Central Office	ITU-T K.20	Dual resistors plus PTCs	Downloads
4B06B-540-VBO1/VBO2	Customer Premise Equipment, Central Office	GR-1089-CORE	Dual resistor plus fuses + overvoltage thyristors	Downloads
4B06B-DF1-VBO1/VBO2	Customer Premise Equipment, Central Office	GR-1089-CORE	Dual resistor plus fuses + overvoltage thyristors

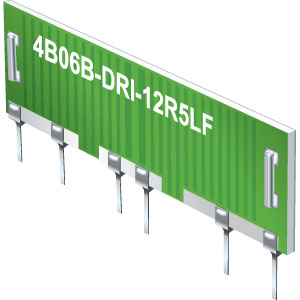

4B06B-DR1-12R5	Customer Premise Equipment, Central Office	GR-1089-CORE	Dual resistor plus fuses
4B08B-503-XXX	Customer Premise Equipment, Central Office	ITU-T K.20	Dual resistor plus fuses	Downloads
4B08B-513-RC	Customer Premise Equipment, Central Office	ITU-T K.20	Dual resistors	Downloads

Schaltungsschutz Telekommunikation – Auswahlhilfe

Model/Datasheet	Bild	MSL	Lötprofile	Verpackungsetikett	Anschluss	Konf.	Prüfberichte Dritter	MDB	China RoHS
3046		See Note	TBD	TBD	TBD	LMP 1	Request Report	3046 CROHS3046
3048		See Note	TBD	TBD	TBD	LMP 1	Request Report	3048 CROHS3048

File	Type	Size	Uploaded on	Download
Schutz für Hochgeschwindigkeits-Kommunikationsanschlüsse	PDF	843,57 KB	28 Mai, 2015	Download
