J.W. Miller® - Through-Hole Common Mode Chokes

J.W. Miller® - Through-Hole Common Mode Chokes

Specifications

Bourns® J.W. Miller® - Through-Hole Common Mode Chokes are high inductance, reduce conductive EMI emission, and many come in compact sizes. These through-hole CMCs are often used in line filters for switch-mode power supplies.

Mineral Source Reporting for J.W. Miller® Magnetic Products: CMRT

Product Series

Parametric Table

RoHS Files

Collateral

Videos

Request Samples

Contact Us

Series	Data Sheet	Photo	Shielded	Size	Inductance Range	Current Range	Design Files	Engineering	Buy Now
7100			Yes	15.2 - 30.5 OD x 11.4 - 20.3 Thk	0.6 - 50 mH	1 - 10 A	Downloads		Buy
7300			Yes	17 L x 11 - 15.5 W x 12 - 17 Ht	0.5 - 22 mH	0.27 - 1.5 A	Downloads		Buy

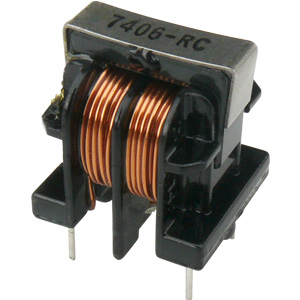

7400			Yes	19 L x 17 W x 21 Ht	0.6 - 45 mH	0.4 - 2.8 A	Downloads		Buy
7500			Yes	23 L x 19 W x 27.5 Ht	0.6 - 45 mH	0.7 - 4.4 A	Downloads		Buy

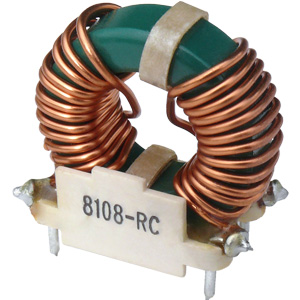

8100			Yes	19.3 - 43.2 L x 10.8 - 22.9 W x 15.2 - 30.5 Ht	1 - 50 mH	1.7 - 20 A	Downloads		Buy
