Fast Acting Series

Fast Acting Series

Bourns line of Fast Acting GDT surge arrestor devices are designed specifically for use with the Bourns® TBU® High-Speed Protector (HSP). These GDT are designed to limit high rate of rise voltage transients to levels below the TBU® HSP peak voltage impulse rating (Vimp).

Conflict Mineral Source Reporting for GDT, SPD, MOV: CMRT

Quick link to the Sample Request: Request Sample
Series 2011 Series w/FLAT® Technology
Data Sheet 2011 Series w/FLAT® Technology
Description Fast Acting 2-Electrode Miniature GDT

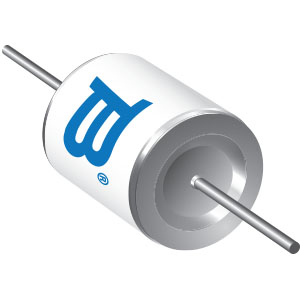

Photo 2011_FLAT_part
Device Symbol gdt_2_electrode
Dimensions (Diameter x Length mm) 8 x 9.45
Capacitance pF <2.9
DC Breakdown Voltage Range V 350
Max 8x20µs Impulse Current (kA) 1 Application See data sheet
Operating Temperature Range C° -40 to +90
Packaging Options Tape & Reel, Bulk
RoHS Compliant 2011-FLAT
Related Documents 2011 FLAT
Design Files Downloads
