接觸式編碼器

首頁 / 產品 / 編碼器 / 接觸式編碼器

技術規格

旋轉式編碼器適用於各種應用數位電流產品上的數位面板控制器，或是位置感應裝置。Bourns 這些裝置可為接觸式或光學式，並可應用於各種解決方案上。有些型號提供瞬間按鍵開關和止動裝置。

典型的應用包含溫度控制器、速度控制器、位置感應器、目錄選擇，以及音量控制。

Sensors, Panel Controls, Encoders, Precision Potentiometers, Dials 的衝突礦產資源報告：CMRT

設計包 Bourns 提供此產品線的設計包

Product Series

Parametric Table

RoHS Files

Collateral

Videos

Request Samples

Series	資料表	封裝	封裝直徑	密封性	止動裝置	開關	轉軸	套管	端點構裝	解析度範圍	旋轉速度	觸點功率	旋轉壽命	MDS	工程文件
3315		Incremental	9 mm	IP67	No	No	Plastic	Plastic/Metal	PC Pins	6, 16 PPR	120 rpm max.	TTL compatible	100,000 cycles @ 6 PPR /25,000 cycles @ 16 PPR	3315Y-L	Downloads
EAW		Absolute	22 mm	IP40	No	No	Plastic	Plastic	PC Pins	128 Position	120 rpm max.	10 mA @ 10 VDC	50,000 shaft revolutions	EAW

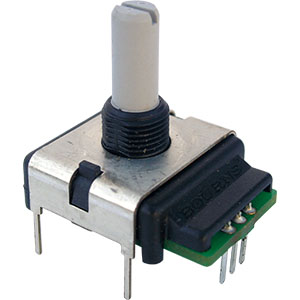

ECW		Incremental	22 mm	IP40	Yes	No	Plastic	Plastic	PC Pins	6, 9, 12, 24, 36 PPR	120 rpm max.	10 mA @ 10 VDC	200,000 shaft revolutions	ECW-L	Downloads
EPS		Incremental	22 mm x 27 mm	IP40	Yes	Yes	Plastic	Plastic	PC Pins	6, 9, 12, 24, 36 PPR	120 rpm max.	10 mA @ 10 VDC	200,000 shaft revolutions		Downloads
ES		Incremental/ Shaftless	20 mm	IP40	Yes	No	None	None	PC Pins	6. 9. 12, 24 PPR	120 rpm max.	10 mA @ 10 VDC	200,000 shaft revolutions	ES-L	Downloads
PEC09		Incremental	9 mm	IP40	Yes	Yes	Metal	Metal	PC Pins	12 - 15 PPR	60 rpm max.	10 mA @ 5 VDC	30,000 cycles	PEC09	Downloads
PEC11R		Incremental	12 mm	IP40	Yes	Yes	Metal	Metal	PC Pins	12, 18, 24 PPR	60 rpm max.	1 mA @ 5 VDC	30,000 cycles	PEC11R	Downloads
PEC11L		Incremental	11 mm	IP40	Yes	Yes	Metal	Metal	PC Pins	9, 15, 20 PPR	60 rpm max.	10 mA @ 5 VDC	100,000 cycles	PEC11L	Downloads
PEC11S		Incremental	12 mm	IP40	Yes	Yes	Metal	Metal	SMD	15 PPR	60 rpm max.	1 mA @ 5 VDC	15,000 cycles	PEC11S	Downloads
PEC12R		Incremental	12 mm	IP40	Yes	Yes	Plastic	Metal	PC Pins	12, 24 PPR	100 rpm max.	1 mA @ 5 VDC	30,000 cycles	PEC12R	Downloads
PEC16		Incremental	16 mm	IP40	Yes	Yes	Plastic	Metal	PC Pins	12, 24 PPR	100 rpm max.	1 mA @ 5 VDC	100,000 cycles	PEC 16	Downloads
PEL12S		Incremental	12 mm	IP40	Yes	No	Plastic	Metal	PC Pins	24 PPR	100 rpm	0.5 mA @ 5 VDC	30,000 cycles	PEL12S
PEL12D		Incremental	12 mm	IP40	Yes	Yes	Plastic	Metal	PC Pins	24 PPR	100 rpm	0.5 mA @ 5 VDC	30,000 cycles	PEL12D	Downloads
PEL12T		Incremental	12 mm	IP40	Yes	Yes	Plastic	Metal	PC Pins	12, 24 PPR	100 rpm	0.5 mA @ 5 VDC	30,000 cycles	PEL12T	Downloads
PES12		Incremental/Shaftless	12 mm	IP40	Yes	No	None	None	PC Pins	24 PPR	60 rpm max.	1 mA @ 5 VDC	30,000 cycles	PES 12	Downloads
PEC11H	PEC11H	Incremental	11 mm	IP40	Yes	Yes	Metal	Metal	PC Pins	8 – 20 PPR	60 rpm max.	10 mA @ 5 VDC	100,000 cycles	PEC11H
PAC18R	PAC18R	Absolute	18 mm	IP64	Yes	No	Plastic	Plastic	PC Pins	8, 12 & 16 Position	60 rpm max.	1 mA @ 10 VDC	30,000 cycles	PAC18R
PER56	PER56	Incremental	56 mm	IP40	Yes	No	None	None	PC Pins	15 PPR	60 rpm max.	10 mA @ 5 VDC	50,000 cycles	PER56
PER35	PER35	Incremental	35 mm	IP40	Yes	No	None	None	PC Pins	10 PPR	60 rpm max.	10 mA @ 5 VDC	50,000 cycles	PER35
PER28	PER28	Incremental	28 mm	IP40	Yes	No	None	None	PC Pins	15 PPR	60 rpm max.	10 mA @ 5 VDC	50,000 cycles	PER28
PER21	PER21	Incremental	21 mm		Yes	No	None	None	PC Pins	9 PPR	60 rpm max.	10 mA @ 5 VDC	50,000 cycles	PER21
PER23	PER23	Incremental	23 mm		Yes	No	None	None	PC Pins	10 PPR	60 rpm max.	10 mA @ 5 VDC	50,000 cycles	PER23
PER60	PER60	Incremental	60 mm		Yes	No	None	None	PC Pins	15 PPR	60 rpm max.	10 mA @ 5 VDC	40,000 cycles	PER60
PEC11D	PEC11D	Incremental	12 mm	IP40	Yes	Yes	Metal	Metal	PC Pins	15 PPR	60 rpm max.	10 mA @ 5 VDC	20,000 cycles	TBD
PEC11J	PEC11J	Incremental	11 mm	IP40	Yes	Yes	Metal	Metal	SMD	9, 15 PPR	60 rpm max.	10 mA @ 5 VDC	100,000 cycles	PEC11J

Encoders - Design Considerations

編碼器應用-訊號調整

Output

Pulses/Shaft Rev.

Detents

Shaft operating Speed

Mounitng

PART NUMBER	Output	Pulses/Shaft Rev.	Detents	Shaft operating Speed	Mounitng	Terminal Style	Body Size	Rotatinal Life	交換機	Led Color	Engineering	Buy Now

PART NUMBER

Output

Pulses/Shaft Rev.

Detents

Shaft operating Speed

Mounitng

Terminal Style

Body Size

Rotatinal Life

交換機

Led Color

Engineering

Buy Now

Model/Datasheet	濕度敏感等級 MSL	焊接圖表	封裝標籤	端子	RoHS 規範證書 CofC	第三方測試報告	物質資料表 MDS	China RoHS
3315	See Note	See Data Sheet	Label	e3	EN-2	Request Report	3315Y-L	China RoHS2 EFUP50 - Encoders EN2
ECW	See Note	See Data Sheet	Label	e3	EN-1	Request Report	ECW-L	China RoHS2 - Encoders EN1
EPS	See Note	See Data Sheet	Label	e3	EN-1	Request Report	TBD	China RoHS2 - Encoders EN1
EAW	See Note	See Data Sheet	Label	e3	EN-1	Request Report	EAW	China RoHS2 - Encoders EN1
ES	See Note	See Data Sheet	Label	e3	EN-1	Request Report	ES-L	China RoHS2 - Encoders EN1
PEC09	TBD	TBD	TBD	TBD	EN-1	Request Report	PEC09	China RoHS2 - Encoders EN1
PEC11R	See Note	See Data Sheet	Label	e3	EN-1	Request Report	PEC11R	China RoHS2 - Encoders EN1
PEC11L	TBD	TBD	TBD	TBD	EN-1	Request Report	PEC11L	China RoHS2 - Encoders EN1
PEC11S	See Note	See Data Sheet	Label	TBD	EN-1	Request Report	PEC11S	China RoHS2 - Encoders EN1
PEC12R	See Note	See Data Sheet	Label	e3	EN-3	Request Report	PEC12R	China RoHS2 EFUP50 - Encoders EN3
PEC 16	See Note	TBD	Label	TBD	EN-1	Request Report	PEC 16	China RoHS2 - Encoders EN1
PEL12S	TBD	TBD	TBD	TBD	EN-1	Request Report	PEL12S	China RoHS2 - Encoders EN1
PEL12D	TBD	TBD	TBD	TBD	EN-1	Request Report	PEL12D	China RoHS2 - Encoders EN1
PEL12T	TBD	TBD	TBD	TBD	EN-1	Request Report	PEL12T	China RoHS2 - Encoders EN1
PES 12	See Note	TBD	Label	TBD	EN-1	Request Report	PES 12	China RoHS2 - Encoders EN1
PEC11H	See Note	See Data Sheet	TBD	e3	EN-4	Request Report	PEC11H	China RoHS2 - Encoders EN1
PAC18R		TBD	TBD	TBD	EN-1	Request Report	PAC18R	China RoHS2 - Encoders EN1
PER56	See Note	See Data Sheet	TBD	TBD	EN-1	Request Report	PER56	China RoHS2 - Encoders EN1
PER35	See Note	See Data Sheet	TBD	TBD	EN-1	Request Report	PER35	China RoHS2 - Encoders EN1
PER28	See Note	See Data Sheet	TBD	TBD	EN-1	Request Report	PER28	China RoHS2 - Encoders EN1
PER21	See Note	See Data Sheet	TBD	TBD	EN-1	Request Report	PER21	China RoHS2 - Encoders EN1
PER23	See Note	See Data Sheet	TBD	TBD	EN-1	Request Report	PER23	China RoHS2 - Encoders EN1
PER60	See Note	See Data Sheet	TBD	TBD	EN-1	Request Report	PER60	China RoHS2 - Encoders EN1
PEC11D	See Note	See Data Sheet	TBD	e3	EN-4	Request Report	TBD	China RoHS2 - Encoders EN1
PEC11J	1	See Data Sheet	TBD	e3	EN-1	Request Report	PEC11J	China RoHS2 - Encoders EN1
